Viessmann

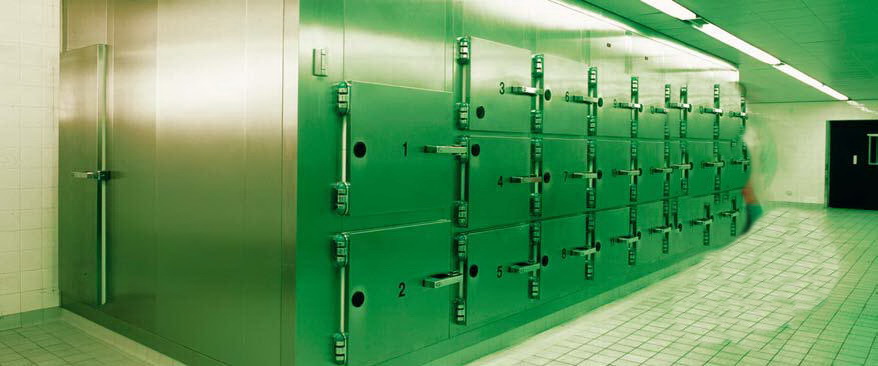

Leichen Schrankfachanlage ohne Begehungstüre 24 Luken
für normale Verstorbene 70x50 cm in weiss mit 2 Aggregaten Decke CT
2000 + Regale in Edelstahl Front und 2 Seiten Edelstahl 2,40 x 7,20 x 2,41 m hoch Zelle 80 mm isoliert
2 mortuary
refrigerators 2400x 7200 x2410 mm 80 mm isolated
without committing door hatches 24 for normal Deceased 70x50 cm in
white with 2 units Ceiling CT 2000 + shelves in stainless steel
an outside 3 sides alo stainless steel a €
59.900,-- for 2024

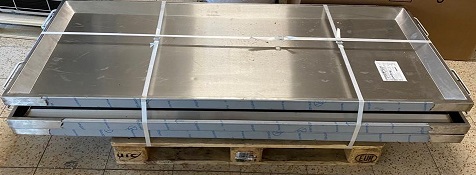

24 body trays a
€ 590,--
1 lifting trolley
each € 3.990,--
2 stronger Coolings Units CT 3000 additional price each € 1.290,--
better isolation 100 mm additional price € 2.800,-- 1 Commiting Door in one side+1 m more space in the back for cleaning
3300x 7200
x2410 mm each additional price € 2.500,--
mortuary refrigerator viessmann
alternativ
MORTUARY REFRIGERATOR with
the present we follow your request, we thank you for, sending you
our present best proposal for the following required item :
|
Option A
n. 2 mortuary refrigerators 24 bodies each,
6 tiers 4 bodies each,
individual doors proposed in the following versions :
- Zinc plated
each €
55.500,-- + mwst 22
stainless steel
each
€ 61.500,--
+ mwst
- N. 1 with one cooling unit
|
Option B
n. 2 mortuary refrigerators 24 bodies each,
8 tiers 4 bodies each,
individual doors proposed in the following versions :
Zinc plated
each
€
55.500,-- + mwst 22
stainless steel
each
€ 68.500,--
+ mwst
- N. 1
with one
cooling unit
|
|
Option C
n. 2 mortuary refrigerators 24 bodies each,
n. 4 tiers 6 bodies each,
4 big doors proposed in the following versions :
Zinc plated
each
€
48.900,-- + mwst
stainless steel
each
€ 52.900,--
+ mwst
- N. 1
with one
cooling unit
|
n.
2 cooling units in stand by
|
Accessory
2 nd
cooling unit working in stand-by with automatic
switch over device each € 6.200,--
+ mwst
|
|
| |
|
Our terms are the following : Delivery period : 5 / 6 weeks
about, ex our company. Prices : in €uro, ex-works.
Option A
2 mortuary refrigerators 24 bodies each, 6 tiers 4 bodies each,
individual doors,
proposed in the following versions :
- Zinc plated /
stainless steel - N. 1 cooling unit
/ n. 2 cooling units in stand by

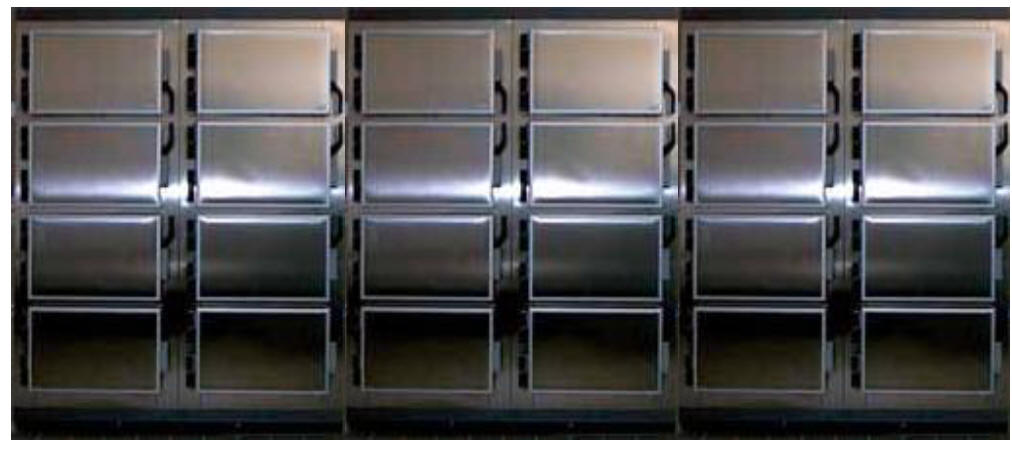

Mortuary refrigerator 24 in 4 Line
|
dimensions
Length mm. 5.580
Depth mm. 2.260
Height mm. 2.680
These dimensions do not include
the cooling unit, that can be :
Either monoblock on top Or monoblock lateral Or remote
Accordingly to site conditions
|
Technical data
Working temperature 0°C
Temperature range - 5 °C / + 5°C
Voltage V380 / 3 / 50
Refrigerant
|
Option B
n. 2 mortuary refrigerators 24 bodies each, 8 tiers 3 bodies each,
individual doors,
proposed in the following versions :
- Zinc
plated / stainless steel
- N. 1
cooling unit / n. 2 cooling units in stand by
Mortuary refrigerator 24 in 3 Line
|
dimensions
Length mm. 7.420
Depth mm. 2.260
Height mm. 2.280
These dimensions do not include
the cooling unit, that can be :
Either monoblock on top Or monoblock lateral Or remote Accordingly to site conditions
|
Technical data
Working temperature 0°C
Temperature range - 5 °C / + 5°C
Voltage V380 / 3 / 50
Refrigerant
|
Option
|
Option c
n. 2 mortuary refrigerators 24 bodies each, 4 tiers 6
bodies each, 4 big doors,
proposed in the following versions :
- Zinc plated / stainless steel
- N. 1 cooling unit / n. 2 cooling units in stand by
|
 |
|
dimensions
Length mm. 3.740
Depth mm. 2.260
Height mm. 2.680
These dimensions do not include the cooling unit, that
can be :
Either monoblock on top
Or monoblock lateral
Or remote
Accordingly to site conditions
|
Technical data
Working temperature 0°C
Temperature range - 5 °C / + 5°C
Voltage V380 / 3 / 50
Refrigerant R
|
S TRUCTURAL CHARATERISTICS
BOX STRUCTURE
The box structure is made of modular panels that are formed by an
insulating diaphramm in stiff polyurethane foam that is injected
between the two metal plates.
Panel thickness : 80mm
WALLS, CEILING AND DOORS
- STANDARD FINISHING: plastic-galvanized steel plate with white,
atoxic and stiff PVC film with a thickness of 120 μ that
self-extinguishes and complies with the hygienic regulations. -
STAINLESS STEEL FINISHING: internal and external stainless steel
AISI 304.
FLOOR
The floor is made of a reinforced polyurethane foam with
pre-compressed wooden shaving plates, thickness 10 mm.
- STANDARD FINISHING: plastic-galvanized steel plate with grey,
anti-slip, atoxic and stiff PVC film with a thickness of 200 μ that
self-extinguishes and complies with the hygienic norm.
- STAINLESS STEEL FINISHING: in stainless steel AISI 304.
THERMIC INSULATION
The thermic insulation is given by stiff self-extinguishing
polyurethane foam according to the Norms ASTM D 1692, density 40
Kg/m3, a Very good thermic, chemical and
dimensional stability.
BODY STRETCHERS AND INTERNAL STRUCTURE
The stretchers are completely stainless steel. A basin border
allows to collect the liquids. They are equipped with nylon wheels
to move them on the cold room rails and with handles to easy
introduction, extraction and transport. Inside the cold room there
is a tubular stainless steel structure welcoming the stretchers and
allowing their exit with an at least 50% overhanging of their length:
this for possible acknowledgement operations of the body or for
autopsies. The stretcher can be always extracted completely from the
cold room.
REFRIGERATING PLANT
The refrigerating group is made of first quality materials and of
the accessories of the best sector trademarks. It is available in
monoblock on in the remote version and it includes: the condensing
unit, the evaporating unit and the electronic and control panel.
- BODYWORK: in painted steel plate and structured with removable
panels for an easy maintenance.
- COMPRESSOR: it’s gas-proof and cooled by the suctioned gas; it
is equipped with an integral protection engine with electronically
adjusted thermistors. Ecological gas. The gas spreading is carried
out using a capillary tube or the thermostatic valve. The nominal
powers are indicated in the proper illustration charts.
BATTERIES, ELECTRIC FANS AND DEFROSTING
The thermic exchange batteries (evaporator and condenser) are
made of copper tubes; the aluminium chassis and finning have a wide
exchange surface. The electric fans for evaporation are hermetic.
The defrosting with the hot gas system and the electric
resistances prevent the condensate loss. 6
CONTROL PANEL
It is completely automatic and programmed to control all the
plant functions. An electronic gear-case allows the adjust of the
tools according to the different needs (thermostat, operation set
with min/max values, choice of the defrosting type, start delay of
evaporator fans, stop time after the defrosting for the discharger
drainage, temperature alarm, feeler breaking, internal lighting,
protections on the number of interventions on the thermostat).
STANDARD EQUIPMENT
- lighting inside the cold room through a micro-switch located on
the doors with following plant turning off;
- digital reading electronic control panel;
- alarm for temperature changes or functioning problems;
- water discharging drain placed on the cold room floor.
ACCESSORY (SEPARATELY QUOTED)
-SECOND COOLING UNIT WORKING IN STND BY
Refrigeration system with n. 2 complete systems with duplicate
condensing units and evaporators (fan coil). Each of these systems
are enough to cool the cabinet independently. So, if one fails for
any reason, the other one takes over automatically in order to
maintain the required temperature. Its timer will alternate the two
refrigeration system running over for 3.5 and using 3.5 days, so
enhancing the life of the system. 7
|
Accessory :

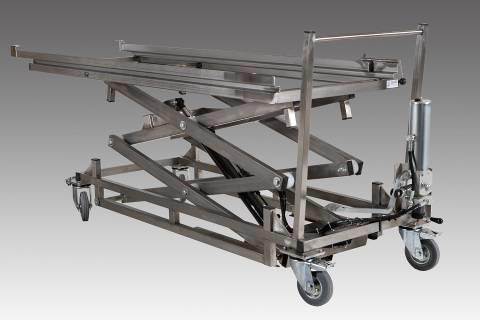

Hydraulic lifting trolley for insertion and extraction
from the cold room Code –CEAC028
€
5.590,-- + mwst 2024
|
 |
|
Length mm. 2200
width mm. 800
Max height mm. 1800
Min height mm. 400
Load kg. 200
|
The hydraulic lifting trolley is used both for the
transport of bodies on stretcher and together with the cold
rooms for the insertion and the extraction of stretchers by
one operator. It is stainless steel with a double scissors
lifting frame in order to reach the 3rd upper place on the
cold room.
The oil-pressure lifting system is assured by a hydraulic
pump that is activated by foot; the lowering can have an
adjustable speed. It is equipped with a flow regulator in
order to prevent the load to low itself quickly so damaging
the operator, after that it has been lifted and it must be
lowered.
The supporting plane is used to place the stretcher that
will be inserted in the proper cold room.
It is equipped with two steering wheels and two free ones.
|
|
